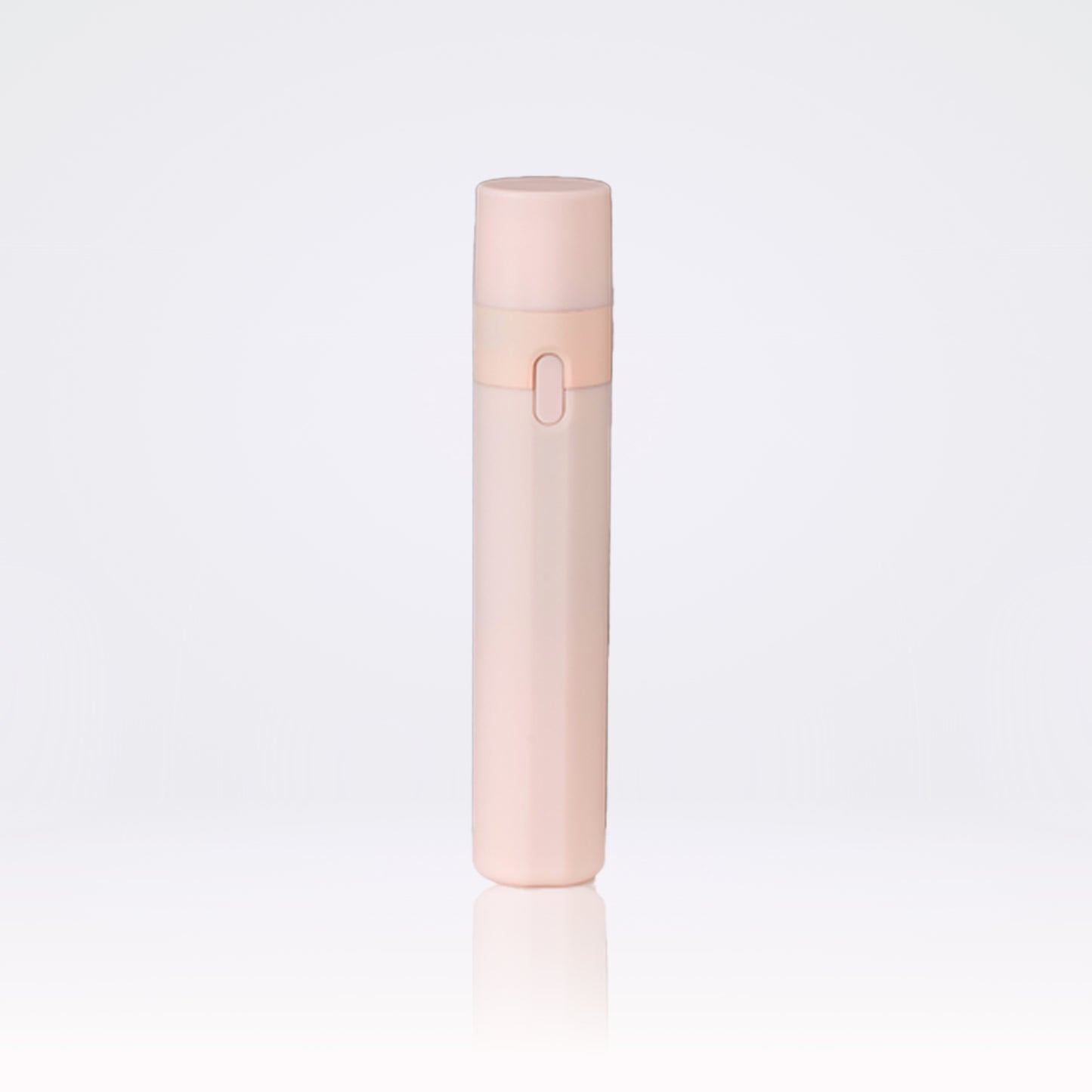

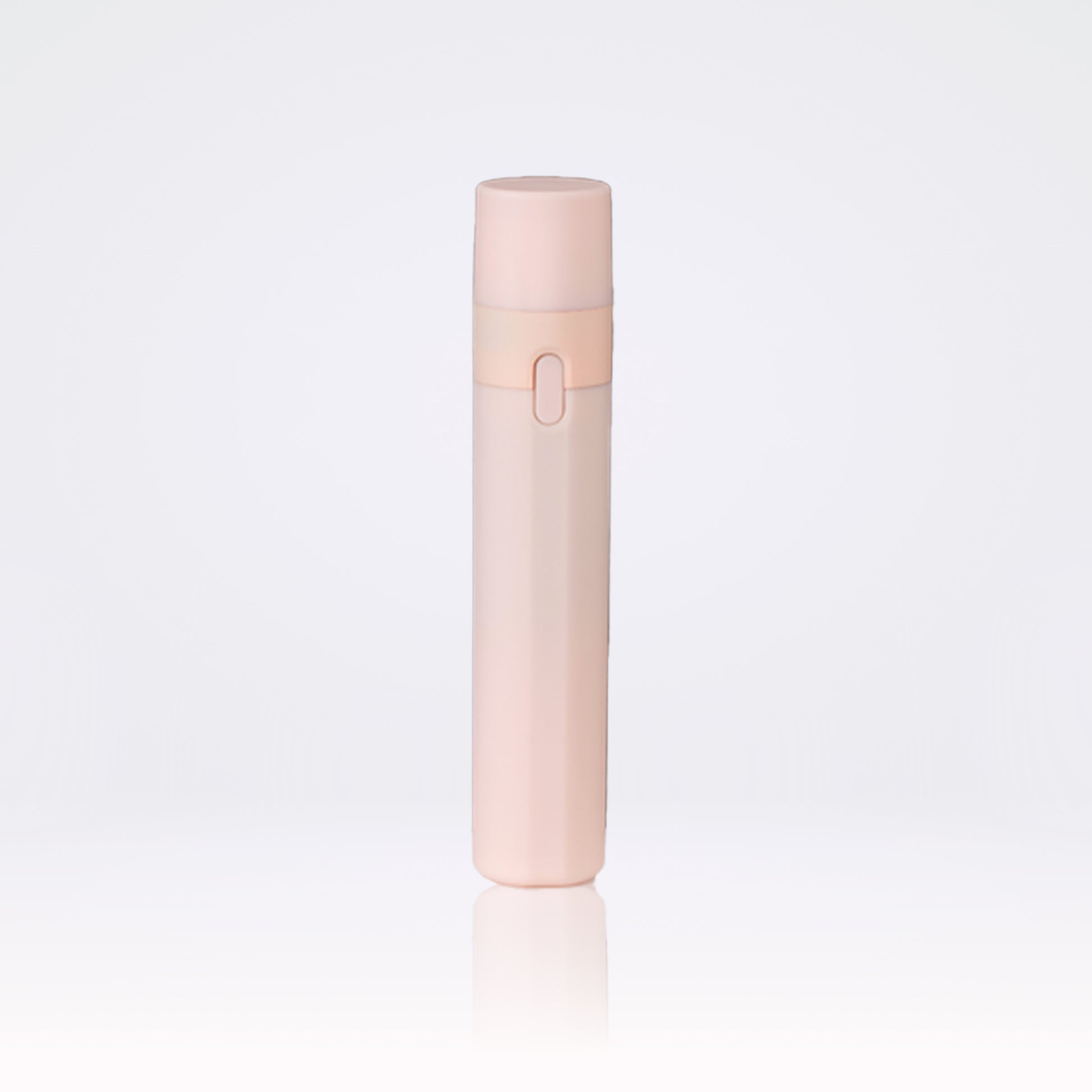

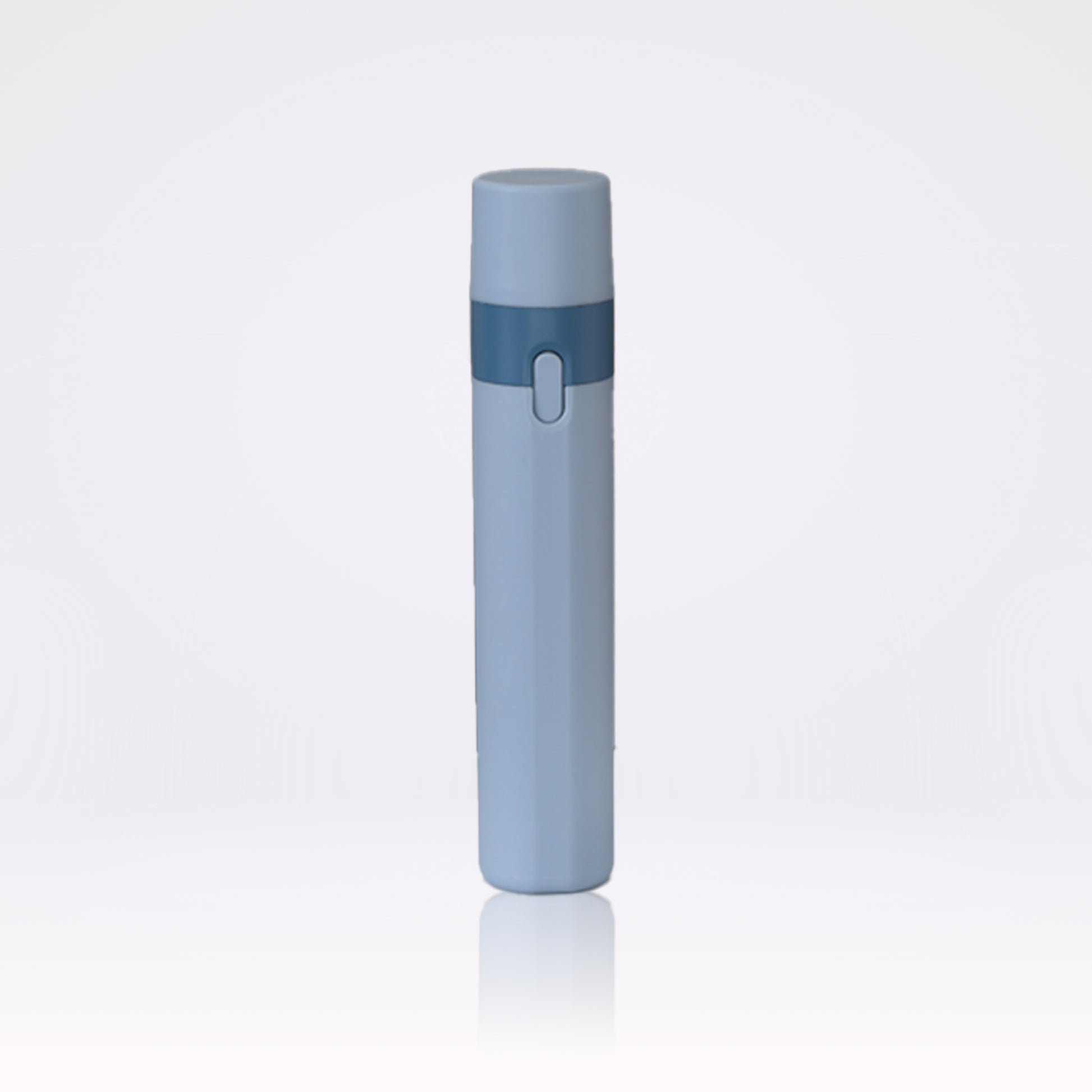

I. Product Model/ Product Name

Product model: KP03

Product name: Electronic oral spray

Manufacturer: Zhongshan Xinlijia Intelligent Technology Co., Ltd

Origin: China

II. Images of product sizes

(specific measurements in 2D images)



III. Product Introduction

1. External sizes：Φ23.5X120mm

2. Charging cable：1 white charging cable USBA+Type-C (30-cm length)

3. Charger adapter：DC 5V（Product does not include adapter）

4. Power Button : The device body has 1 mechanical power button

5. Device battery: 3.7V  180mAh

6. Volume：6.5ml±1ml

7. Flavors: Standard flavors (mint, chamomile or peach).

8. Usage instruction and operating principle：

(1）The device starts spraying when pressing the button, stops when releasing the button, the longest-lasting spraying time is 6s/spray.

(2）Signal light:

A. The device is in operation: the light is on (from the time the button is pressed until when the button is released, or until after completing 6s of spraying).

B. The device has low battery: Light flashes dimly while in operation.

C. The device is turned off as a protection method when the battery is low: After the light flashes 5 times, the device is turned off (it will not spray).

D. The device is in charging status: light flashes constantly.

E. The device is fully charged: the light is steady.

9. Recharge the battery:

(1) When the device has low battery and the signal light flashes, you can plug the Type-C end of the charging cable into the device, the other end is plugged into the 5V DC power source.

(2) After fully charged, the electronic oral spray can perform more than 200 times (each time lasts 6 seconds), the charging time of this device is about 2.5 hours.

10. Usage Requirements

(1) Spray Distance: >10cm.

(2) Diameter of mist spray: 1~2mm

(3) Spraying times: more than 50 times

(4) The flavors last for: >10 min (the length of time will differ for different liquids).

IV. Electronic engineering parameters of the product

1. Voltage: DC 5V/1A.

2. Charging current: I≦180mA.

3. Device current: I≦5μA.

4. Voltage in cases:

Voltage when battery is full: 4.1V±0.1V.

Voltage when battery is low: 3.4V±0.1V.

Voltage when the device is turned off: 3.1V±0.1V.
